Vulcan VC44ED Double Deck Electric Convection Oven

Vulcan VC44ED Double Deck Electric Convection Oven

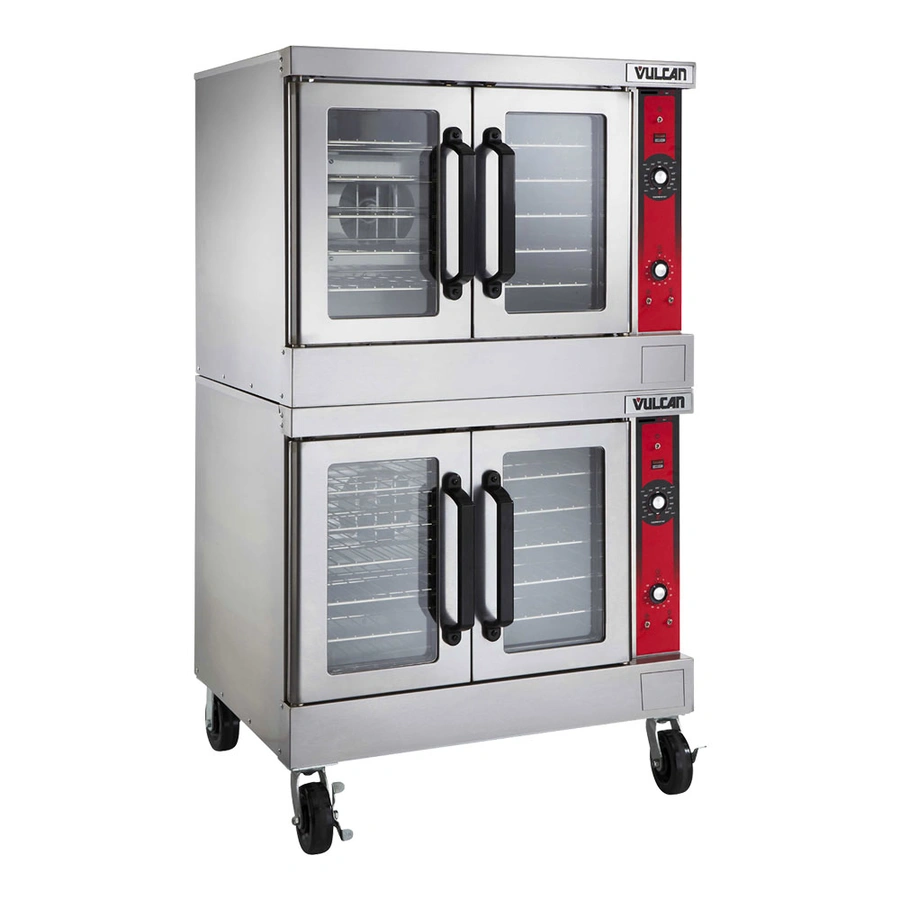

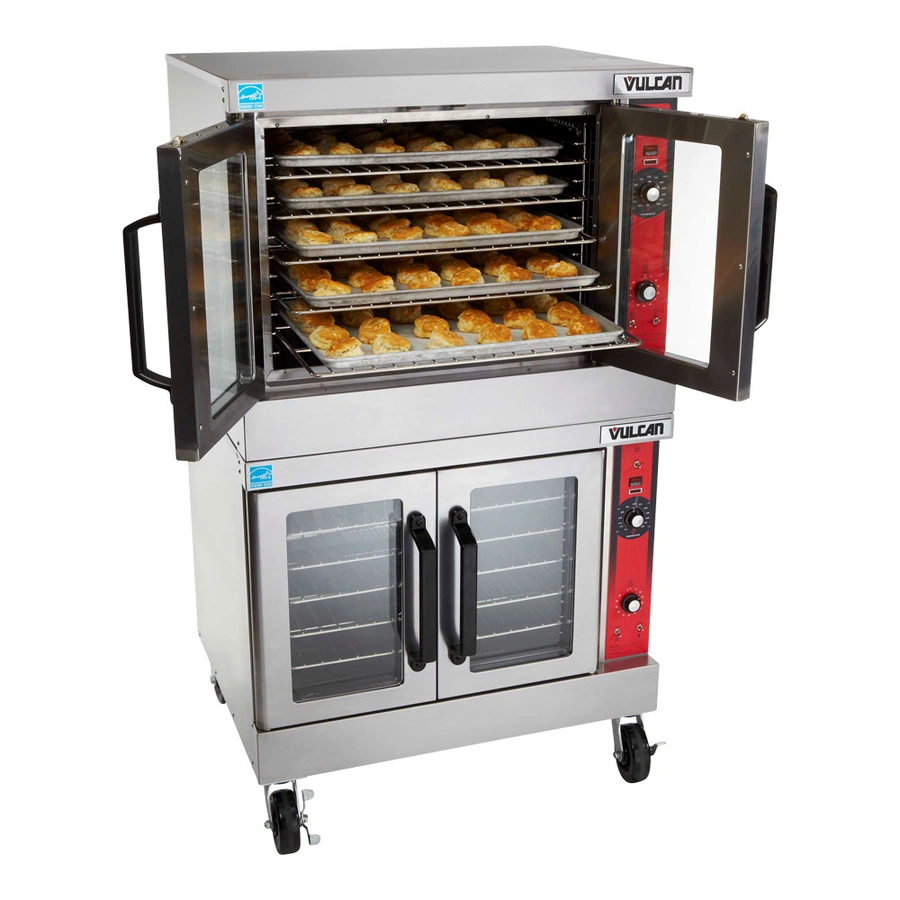

The Vulcan VC44ED Double Deck Electric Convection Ovens has solid-state temperature controls adjust from 150° to 500°F along with a 60-minute timer with audible alarm. It has two sections and is furnished with a two speed 1/2 H.P. oven blower-motor per section. It has a oven cool switch for rapid cool down. 208 or 240 volt, 60 Hz, 1 or 3 phase. Each section is heated by electric solid sheath elements rated at 12 KW. The product has a stainless steel front, sides, top and legs. Independently operated stainless steel doors with windows open a full 180°. Non-sag insulation applied to the top, rear, sides, bottom and doors. Porcelain enamel on steel oven interiors measure 29"w x 22 1/8"d x 20"h. Two interior oven lights per section. Five nickel plated oven racks per section measure 28 1/4" x 20 1/2". Eleven position nickel plated rack guides with positive rack stops per section. One year limited parts and labor warranty, Two yearr warranty for K-12 schools .

The optional features include five hour timer in place of 60 minute timer, simultaneous opening chain driven doors, casters, flanged feet, 480V/60 Hz/1 or 3 phase, and second year extended limited parts and labor warranty.

The accessories include a stainless steel rear motor enclosure, extra oven rack(s), and a stainless steel drip pan.

SPECIFICATIONS

Specifications and design are subject to change without notice.

MODEL NO.:

VC44ED

PRODUCT NAME:

Vulcan VC44ED Series Double Deck Electric Convection Ovens

EXTERIOR DIMENSIONS:

Width: 40"

Depth: 41 1/2" (includes door handles)

Height: 70" on 8" legs

OPTIONAL VOLTAGES:

480 volt, 60 Hz, 3 phase.

220/380 volt, 50 Hz, 1 phase, 3 wire.

220/380 volt, 50 Hz, 3 phase, 4 wire.

240/415 volt, 50 Hz, 3 phase, 4 wire.

TOTAL CONN. KW:

25

3 PHASE LOAD KW PER PHASE:

X-Y: 8

Y-Z: 8

X-Z: 9

NOMINAL AMPS PER LINE WIRE:

1 Phase:

208V: 120

240V: 104

3 Phase:

208V: X: 70 Y: 66 Z: 70

240V: X: 66 Y: 58 Z: 66

480V: X: 28 Y: 30 Z: 30

KNOCKOUTS:

1.750 dia. knockout in top for stacking conduit connection. 1.50 and 2.00 dia. concentric knockouts in base for conduit connection. Knockouts for stacking.

CERTIFICATIONS & LISTINGS:

Energy Star rated. NSF listed. UL listed. UL listed to Canadian safety standards.
